AlCrN/硅系陶瓷在大气、海水环境下的摩擦学性能

Tribological performance of AlCrN coating sliding against Si-based ceramic balls in ambient air and seawater conditions

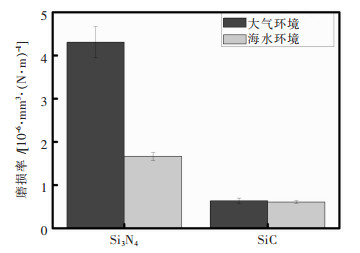

  • 摘要: 采用多弧离子镀技术在316L不锈钢基底上沉积AlCrN涂层.通过扫描电子显微镜(SEM)、X射线衍射仪(XRD)、纳米压痕仪等分析测试手段,对镀层的形貌、成分、相结构、硬度等进行表征,并利用摩擦磨损实验机Rtec考察AlCrN/陶瓷(Si3N4、SiC)在大气、海水环境下的摩擦学性能.结果表明:在大气、海水环境下,AlCrN/SiC的摩擦系数和磨损率都远小于AlCrN/Si3N4;SiC球表面的微观凹坑对氧化膜SiO2起到收纳作用,同时减少磨粒磨损.较之于Si3N4陶瓷配副,AlCrN涂层与SiC陶瓷对磨时表现出更为优异的摩擦学性能.



    Abstract: AlCrN coatings were deposited on 316L stainless steel substrates by the multi-arc plating technique. Composition, morphology, phase and hardness of the AlCrN coatings were characterized by scanning electron microscope (SEM), X-ray diffraction (XRD) and nano-indenter tester. The tribological performance of AlCrN coatings sliding against the Si3N4 and SiC ceramic balls under ambient air and seawater conditions were investigated by using a tribometer (Rtec). The results show that the coefficient of friction and wear rates of AlCrN/SiC are far lower than that of AlCrN/Si3N4 in both environments. The tribochemical product (SiO2) occurs on the wear area and being acted as a lubricant. Dimples on the surface of SiC are in favor of keeping the tribological film in the wear track and relieving the abrasive wear. In comparison with Si3N4, the AlCrN coating sliding against SiC ceramic exhibits more excellent tribological properties.



/
