研磨-焙烧法制备BiOI/BiOBr异质结光催化剂及其光催化性能

薛霜霜, 何洪波, 吴榛, 余长林, 周晚琴

薛霜霜, 何洪波, 吴榛, 余长林, 周晚琴. 研磨-焙烧法制备BiOI/BiOBr异质结光催化剂及其光催化性能[J]. 有色金属科学与工程, 2017, 8(1): 86-93. DOI: 10.13264/j.cnki.ysjskx.2017.01.015
引用本文: 薛霜霜, 何洪波, 吴榛, 余长林, 周晚琴. 研磨-焙烧法制备BiOI/BiOBr异质结光催化剂及其光催化性能[J]. 有色金属科学与工程, 2017, 8(1): 86-93. DOI: 10.13264/j.cnki.ysjskx.2017.01.015
XUE Shuangshuang, HE Hongbo, WU Zhen, YU Changlin, ZHOU Wanqin. Preparation of BiOI/BiOBr hetero-structured photocatalyst by grinding-calcination route and its photocatalytic performance[J]. Nonferrous Metals Science and Engineering, 2017, 8(1): 86-93. DOI: 10.13264/j.cnki.ysjskx.2017.01.015
Citation: XUE Shuangshuang, HE Hongbo, WU Zhen, YU Changlin, ZHOU Wanqin. Preparation of BiOI/BiOBr hetero-structured photocatalyst by grinding-calcination route and its photocatalytic performance[J]. Nonferrous Metals Science and Engineering, 2017, 8(1): 86-93. DOI: 10.13264/j.cnki.ysjskx.2017.01.015

研磨-焙烧法制备BiOI/BiOBr异质结光催化剂及其光催化性能

基金项目:

国家自然科学基金资助项目 21263005

国家自然科学基金资助项目 21567008

江西省自然科学基金资助项目 20161BAB203090

江西省教育厅高等学校科技落地计划项目 KJLD14046

2015年江西省研究生创新专项资金项目 YC2015-S293

详细信息
    通讯作者:

    余长林(1974-), 男, 教授, 主要从事纳米催化材料与光催化技术及其应用等方面的研究, E-mail:yuchanglinjx@163.com

  • 中图分类号: TF125;TG146

Preparation of BiOI/BiOBr hetero-structured photocatalyst by grinding-calcination route and its photocatalytic performance

  • 摘要: 首先通过沉淀法制备BiOBr和BiOI纳米粉体,然后在主体BiOBr光催化剂中掺杂不同含量的共催化剂BiOI,充分研磨后在不同温度下进行煅烧3 h,制备了BiOI/BiOBr系列复合物,其中BiOI的质量分数分别为1%,2%,4%和8%.采用氮气物理吸附、X射线粉末衍射(XRD)、扫描电镜(SEM)、傅里叶变换红外光谱(FT-IR)、紫外-可见(UV-Vis) 漫反射(DRS) 和光电流测试等技术对所制备的样品进行表征.以酸性橙Ⅱ为模拟污染物, 在可见光下考察了煅烧温度和BiOI复合含量对BiOBr主体光催化剂的光催化性能的影响.研究表明,当复合BiOI的含量为4%,煅烧温度为400 ℃时所制备的复合光催化剂表现出最高光催化性能,其降解效率分别是纯BiOBr和BiOI的1.7和1.9倍.复合BiOI促进了催化剂对可见光的吸收,同时经过研磨和煅烧形成的BiOI/BiOBr异质相结,促进了光生电子(e-) 和空穴(h+) 的分离,提高了光催化活性.
    Abstract: Pure BiOBr and BiOI nanopowders were first synthesized by precipitation method. BiOBr main photocatalyst and BiOI cocatalyst with different contents were mixed and grinded. After grinding, the composite powder was calcined at different temperatures. The produced BiOI/BiOBr hetero-structured photocatalysts (BiOI mass fraction content: 1%, 2%, 4%, 8%) were characterized by N2-physical adsorption, X-ray diffraction (XRD), scanning electron microscopy (SEM), Fourier translation infrared spectroscopy (FT-IR), and UV-Vis diffuse reflectance spectroscopy (DRS) and photoelectrochemical measurements. Acid orange Ⅱ dye was selected as degradation target pollutant under visible light irradiation. The effects of BiOI coupling concentration and calcination temperature on the photocatalytic performance were investigated. The results show that the BiOI/BiOBr composite photocatalyst with 4% mass fraction of BiOI and calcination at 400 ℃ show about 0.7 and 0.9 times of increasement in degradation rate compared to pure BiOBr and BiOI, respectively. Coupling of BiOI cocatalyst promoted the visible light absorption. Moreover, the formation of BiOI/BiOBr hetero-structure could restrain the recombination rate of photogenerated electrons (e-) and holes (h+). These two reasons could mainly account for the boosting of photocatalytic activity.
  • 配置好的环烷酸,皂化后并不是简单的真溶液,而是水分散在油相中的微乳状液体系,萃取稀土时,上述液体系会使微乳状液破乳。通过串级萃取理论计算得出的有机相理论流量不夹带水份,实际生产中皂化好的环烷酸往往又夹带水份,因此,为达到正常的萃取分离效果,保证产品质量,需要对有坑相理论流量进行校正,即先估算一个百分数,但不可避免地使理论值与实际值有时出现偏差。

    今设:

    Vs实  进槽有机相实际流量 1/min

    Vs理  计算的有机相理论流量

    ε  有机相皂化度

    C  皂化有机相氨水浓度(N)

    V1  未皂化的有机相体积(1)

    V2  将V1皂化为皂化度ε的氨水体积

    则:

    (1)

    (2)

    将式(2)代入式(1)得

    (3)

    (4)

    (5)
    图  1  k~f(C)

    1.系数k与有机相皂化度成正比,皂化度越大K值越大,反之亦然。K和皂化有机相的氨水浓度成反比。

    2.公式(4)和(5),适周于氨水皂化有机相时,水均匀分布于有机相中的任何体系。它的导出,为确定▽s实提供理论依据,为准确地计算整个槽体平衡提供可靠依据。

  • 图  1   合成样品的XRD谱

    Fig  1.   XRD patterns of fabricated samples

    图  2   合成4% BiOI/BiOBr在不同温度煅烧下的SEM像

    Fig  2.   SEM images of 4% BiOI/BiOBr samples calcined at different temperatures

    图  3   样品4% BiOI/BiOBr在不同煅烧温度下煅烧后的FT-IR谱

    Fig  3.   FT-IR spectra of 4% BiOI/BiOBr samples calcined at different temperatures

    图  4   不同样品的UV-Vis DRS谱

    Fig  4.   UV-Vis spectra of fabricated samples

    图  5   样品BiOBr、BiOI和4% BiOI/BiOBr的光电流曲线

    Fig  5.   Transient photocurrent density responses of BiOBr, BiOI and 4% BiOI/BiOBr samples

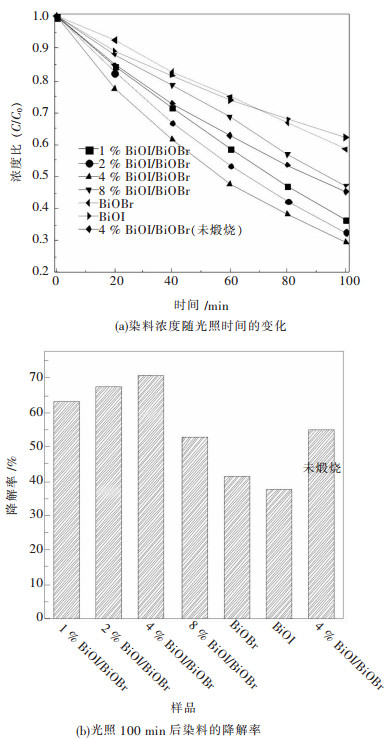

    图  6   在400 ℃煅烧下制备的BiOBr, BiOI和4% BiOI/BiOBr和未煅烧的4% BiOI/BiOBr样品活性比较
